Plastic Industry Pendulum Impact Testing Machine
| Display mode | color touch screen (Chinese and English) |
| Energy display accuracy | 0.01J |
| Impact speed | 3.5m/s |
| Pendulum energy | 11J |
| Pendulum lift angle | 150° |
| Distance from pendulum center to impact blade | 335mm |
| Distance from the impact blade to the upper plane of the jaw | 55mm |
| Edge fillet radius | R=0.8±0.2mm |
| Impact blade angle | 75° |
| Machine weight | about 85kg |
| Power supply voltage | AC220V±10% 50HZ |
Product features:

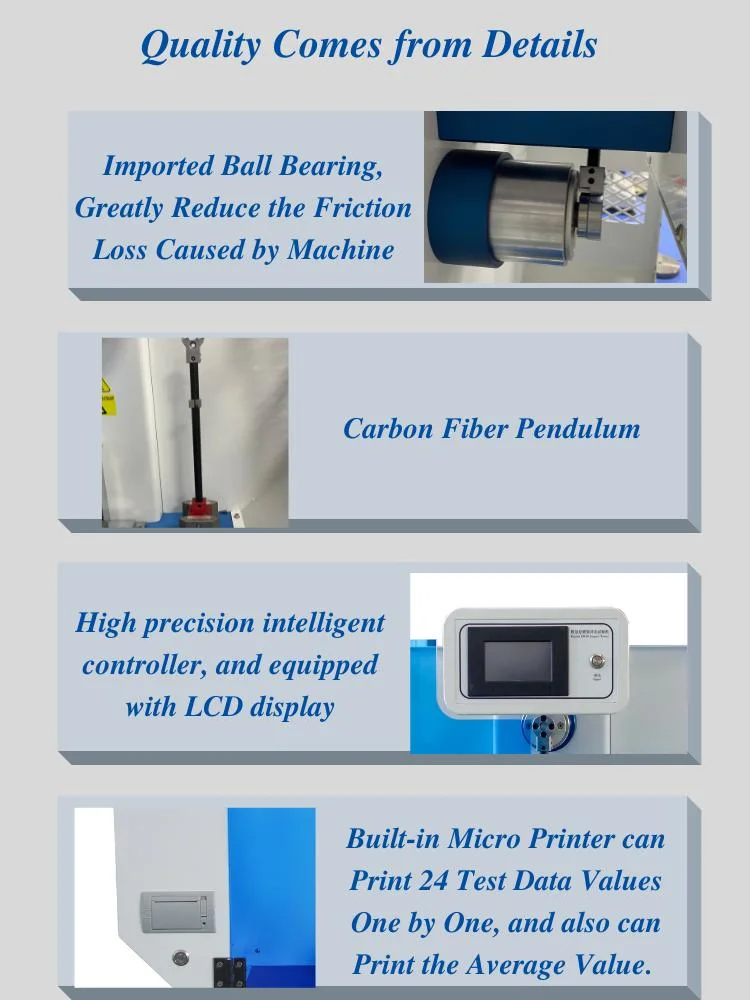

1.Imported high-resolution digital encoders are adopted, and the angle test accuracy is higher and more stable.

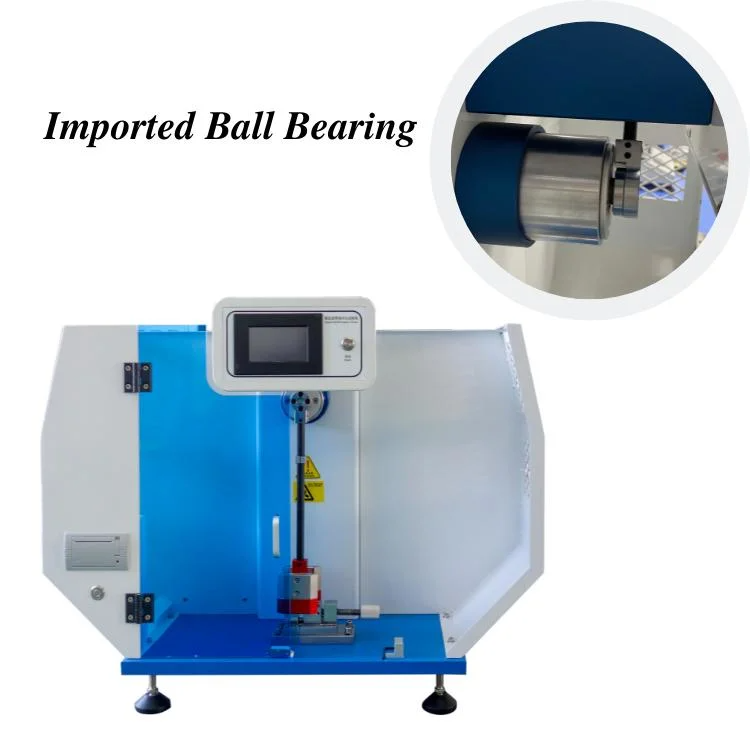

2.The aerodynamic impact hammer and imported ball bearings greatly reduce the friction loss caused by machinery.
3.Automatically calculate the final result, the test data can save 24 sets of data and calculate the average.
4. Built-in micro-printer. 24 test data values can be printed one by one, and the average value can also be printed.
