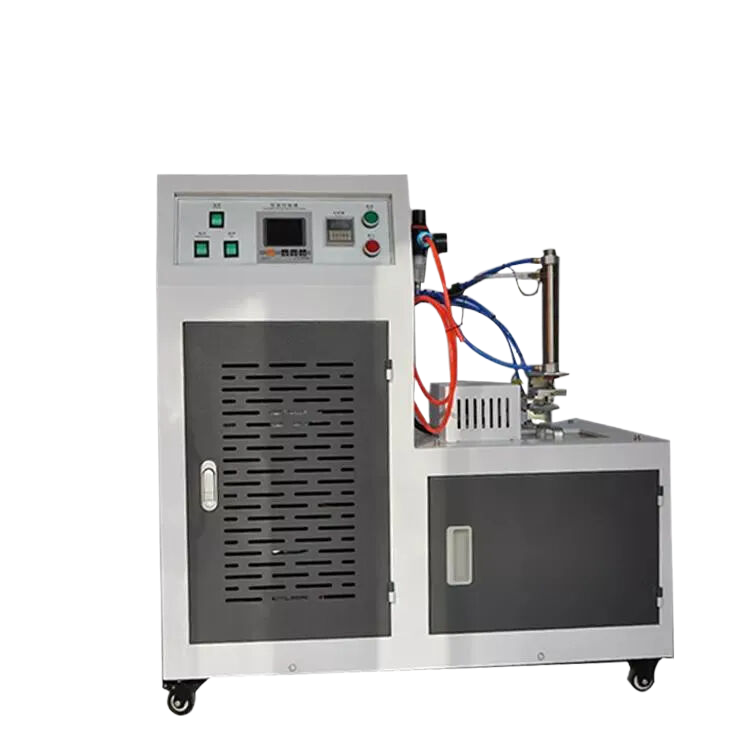

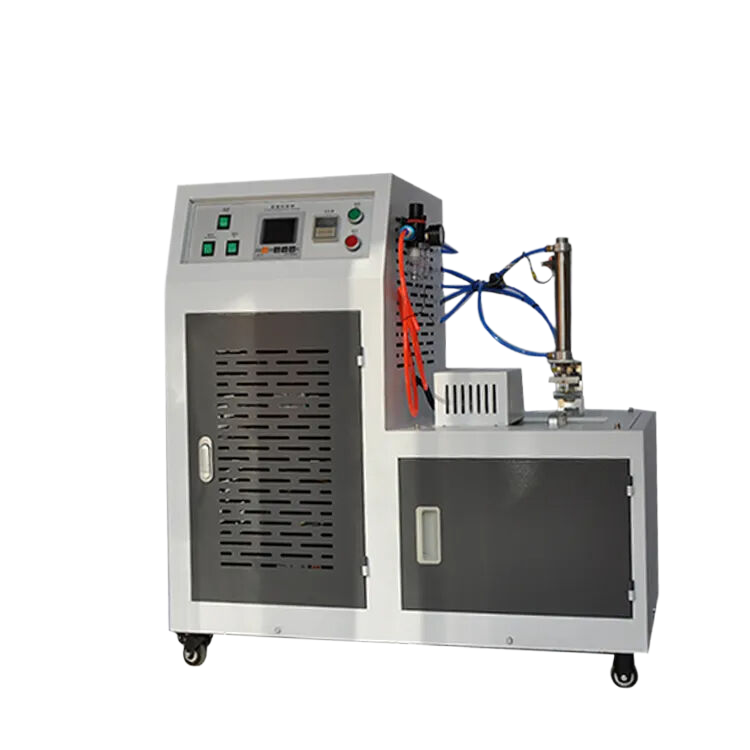

Rubber Low Temperature Brittleness Tester

Used to test the highest temperature called brittleness temperature when the specimen is broken by impact in prescribed conditions. Applied for non-rigid plastic and other flexible materials at low temperatures and also test the brittleness temperature and low temperature performance for different rubber material or different formula vulcanized rubber.

product details

Testing temperature	-80ºC~0ºC
Impact speed	2 m/s±0.2 m/s
Impactor weight	200 ± 20g
Working stroke	40 ± 1mm
Temperature fluctuation	<±0.5ºC
Distance between impactor and clamp	11±0.5 (mm)
Distance between impactor and sample	25±1mm
Volume of colder	3L
Sample size	Length: 25.0±0.5mm, width: 6.0±0.5mm, thickness: 2.0±0.3mm
Power	1100W
Dimension	720×700×1350mm
Weight	150kg

Rubber Low Temperature Brittleness Tester features of the introduction:

1. Precise temperature control
The ability to maintain stable and accurate temperature Settings in low temperature environments provides reliable low temperature conditions for testing.

2. Accurate detection ability
With advanced detection system, it can accurately measure the brittleness change of rubber material at low temperature, and the data is accurate and reliable.

3. Easy to operate
Equipped with intelligent control panel and clear operation instructions, operators can easily get started.

4. Excellent performance
It has good stability and repeatability, and can ensure the consistency of multiple test results.
Compact design, small space, easy to be installed and used in the laboratory.
Efficient refrigeration system, can quickly reach the set low temperature, save test time, improve work efficiency.
It has perfect safety protection mechanism, such as overload protection, overtemperature protection, etc., to ensure the safety of personnel and equipment.
