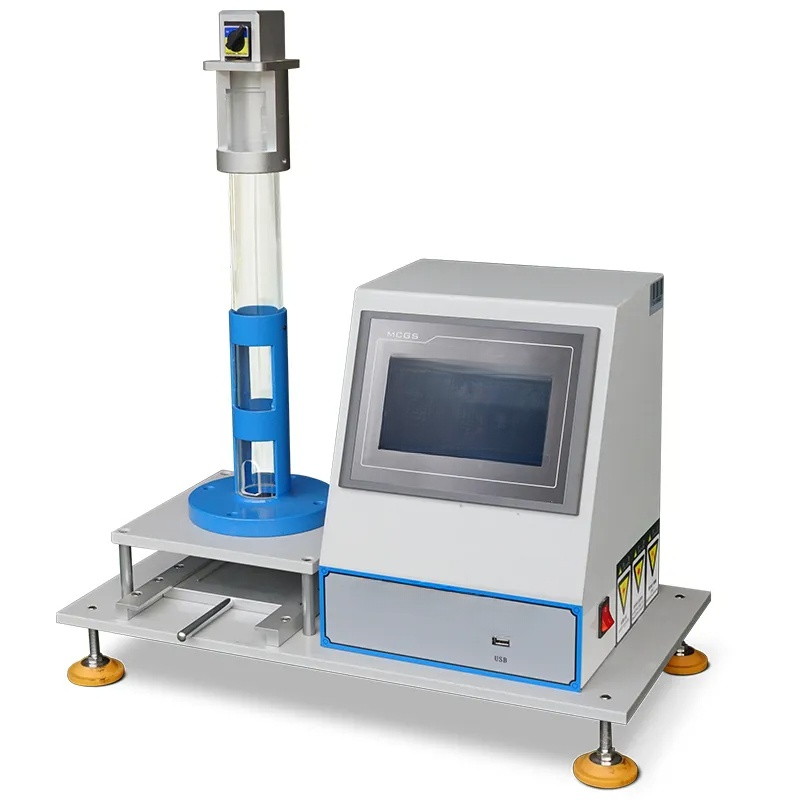

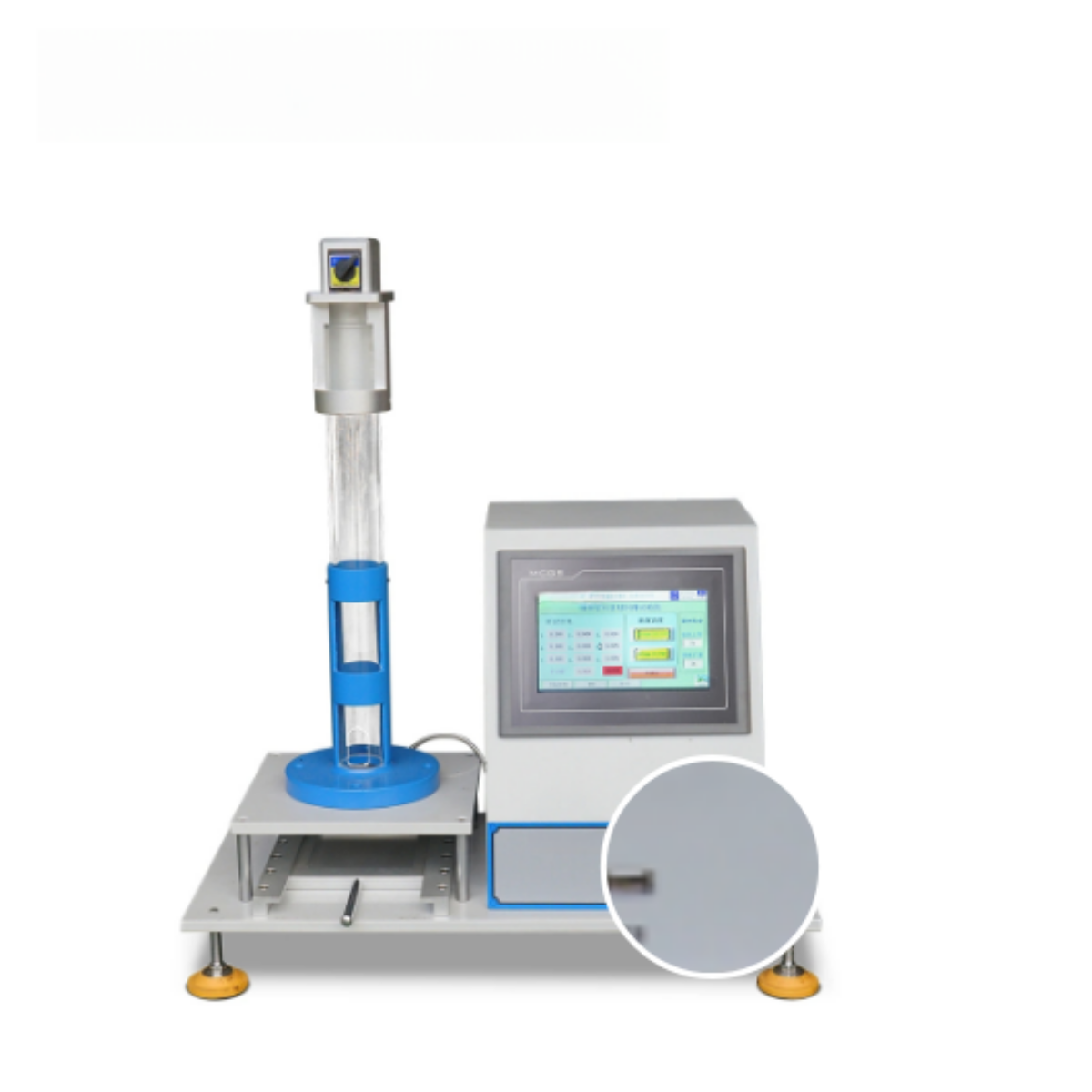

Ball Drop Rebound Foam Test Equipment
product detail
| Drop height(adjustable) | 500±0.5%mm(ASTM ISO) |
| Ball diameter | ¢16±0.05 mm |
| Accuracy | <1.5% |
| Display | LCD Touch Screen interface |
| Test result | Average rebound height, average spring rate |
| Sample Dimension | (L×W×H)100 mm×100 mm× 50mm |
| Power | AC220V±10%, 50/60Hz, single phase |
Ball fall rebound foam testing equipment is an important instrument specially used to measure the resilience of foam materials.
Foam materials are widely used in many fields, such as furniture manufacturing, automotive interiors, sports equipment and so on. Good resilience is essential for the comfort, durability and safety of these products. Ball rebound foam testing equipment provides a scientific and objective testing means for manufacturers and quality testing institutions.
The equipment has the advantages of simple operation, accurate and reliable test results. The test process is highly automated, which reduces the influence of human error. At the same time, it can be used to test different types of foam materials with different densities, and has a wide range of applications. By using the ball rebound foam testing equipment, manufacturers can timely understand the performance of foam materials, optimize the production process, and improve product quality. In addition, quality testing institutions can also use the equipment to carry out strict quality supervision of foam products on the market to protect the rights and interests of consumers. In short, ball rebound foam testing equipment plays an indispensable role in the development, production and quality control of foam materials.
