Melt Flow Index Plastic Testing Machine

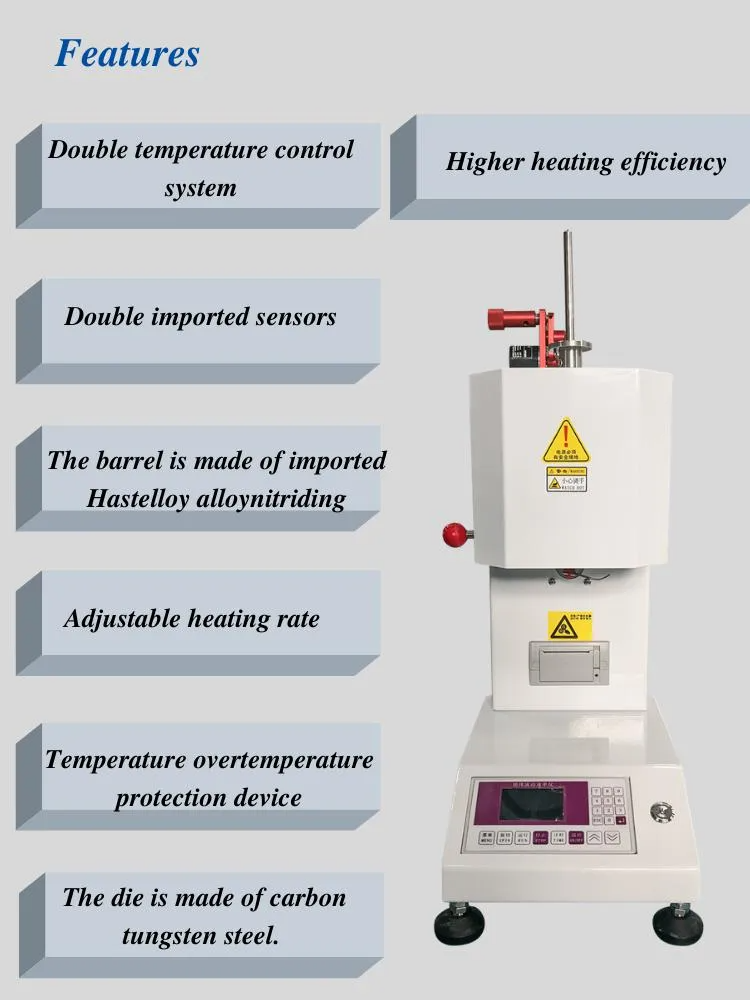

The equipment is mainly composed of heating system, loading system, measuring system and control system. The heating system is able to heat the plastic sample to a specific temperature so that it becomes molten. The loading system applies a certain load to push the molten plastic through the standard die.
The measuring system accurately records the mass of the plastic melt that flows out within a specified period of time to obtain the melt flow index. This index reflects the fluidity of plastics and is of key significance for assessing the processability and quality of plastics.


    Measurement MFR+MVR
    Corrosion resistance No
    Display mode Kestroke control
    Cutting method Hand automatic integration
    Temperature control range 100ºC-450ºC
    Temperature control accuracy ±0.5ºC
    Temperature uniformity ±1ºC
    Thermal recovery time <4min
    Time resolution 0.1S
    Power  AC220V±10%     50HZ

    In application, it is widely used in plastic production enterprises to help control the quality of raw materials and ensure the stability of product processing performance. In new product development, product performance is optimized by testing the melt flow index of different formulations. For the plastic trade, it is an important basis for assessing the quality and value of plastics. In quality inspection institutions, it can be used to monitor whether the quality of plastic products on the market meets the standards. At the same time, in the field of scientific research, it provides important data support for the study of the relationship between the flow characteristics and structural properties of plastics.
