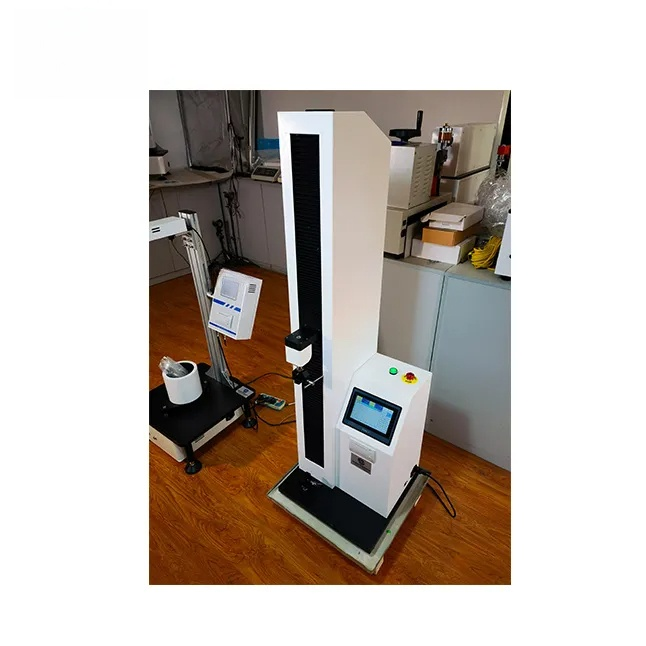

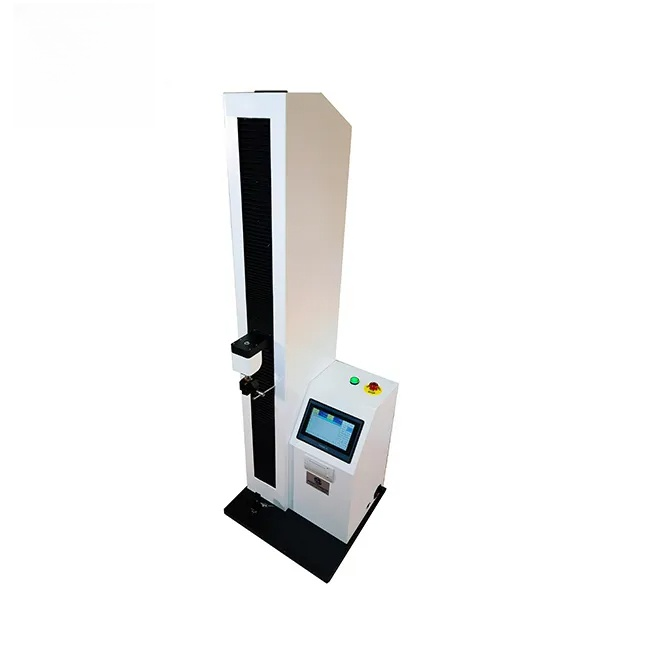

Plastic Film Tensile Test Equipment

Plastic film tensile testing equipment is widely used in the quality control of plastic film production enterprises to help ensure that products meet relevant standards and customer requirements. At the same time, it also provides data support for the research and development department to improve product performance, which is of great significance for improving the quality and market competitiveness of plastic film.

    Load cell  500N (Standard)
    50N, 100 N, 250 N, 1000N (optional)
    Measurement Range 0.5-100% of load cell capacity
    Accuracy of Test Force  0.5% FS
    Resolution 0.001mm
    Displacement Resolution  0.001mm
    Accuracy of Deformation  1% FS
    Testing Speed 1-500mm/min
    Effective Testing Stroke  900mm (after install grips)
    Dimension  500mmx420mmx1550mm
    Weight 80Kgs
    Power Supply 220V±10V 50HZ

    The plastic film tensile testing equipment has high measurement accuracy, and can accurately obtain various data during the film tensile process, which provides a reliable basis for evaluating the film properties. Easy to operate, high degree of automation, reduce human error. Moreover, the equipment has good stability and can be repeated for a long time to ensure the consistency of the results.


    In the application, it is widely used in the quality inspection of plastic film production enterprises to ensure that the products meet the standards. In the field of research and development, we help developers to understand film properties, optimize product formulations and production processes. In addition, for buyers of plastic film, quality suppliers can be screened through testing. In scientific research units, it is used to study the mechanical properties of plastic films and the development of new materials. It can also be applied to quality inspection institutions to carry out quality supervision and testing of plastic film products on the market.
