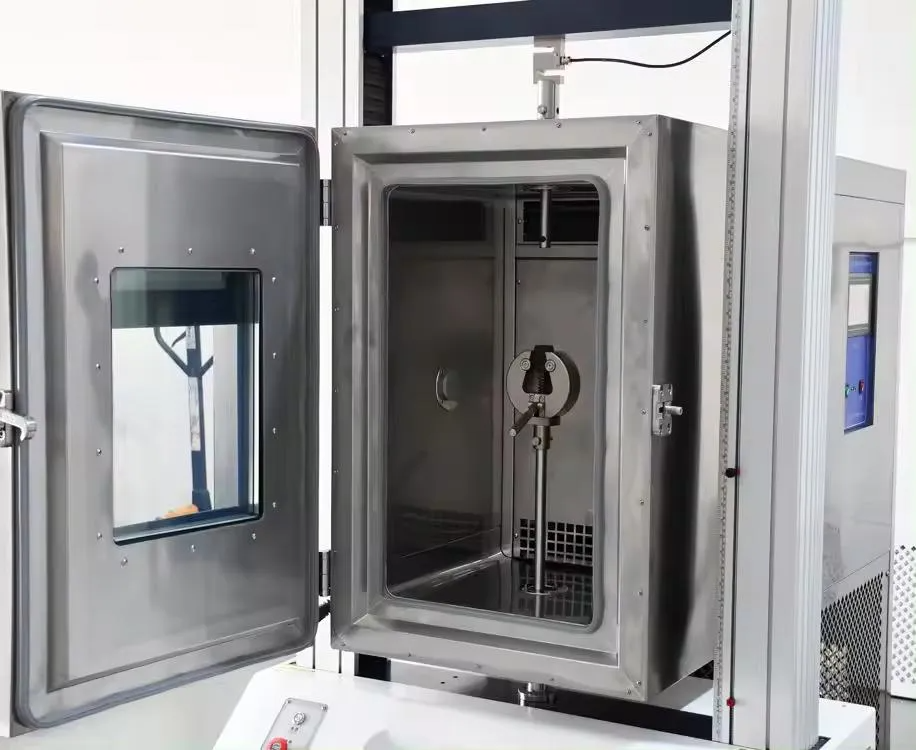

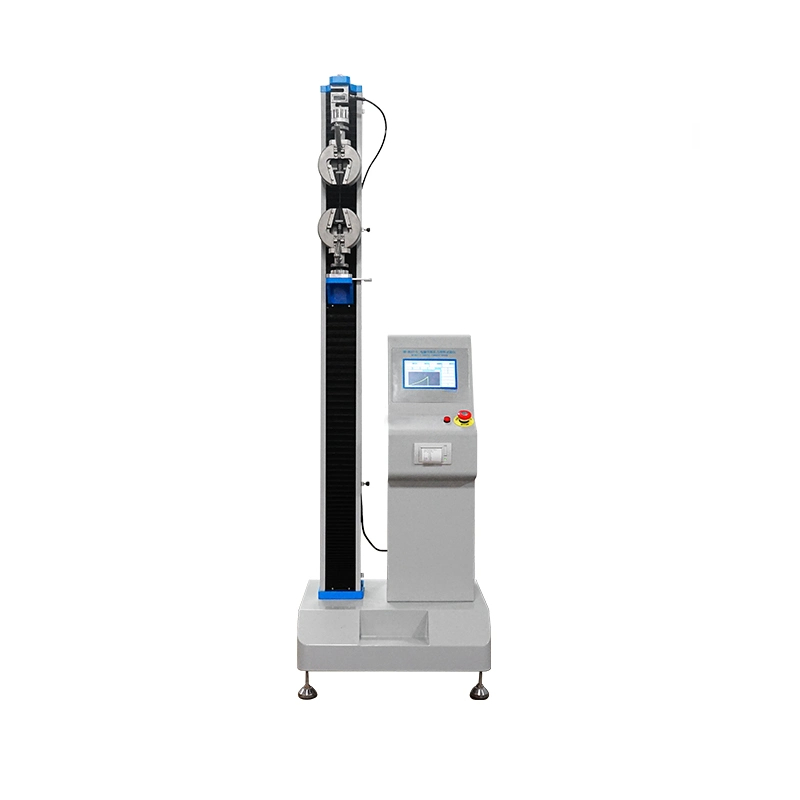

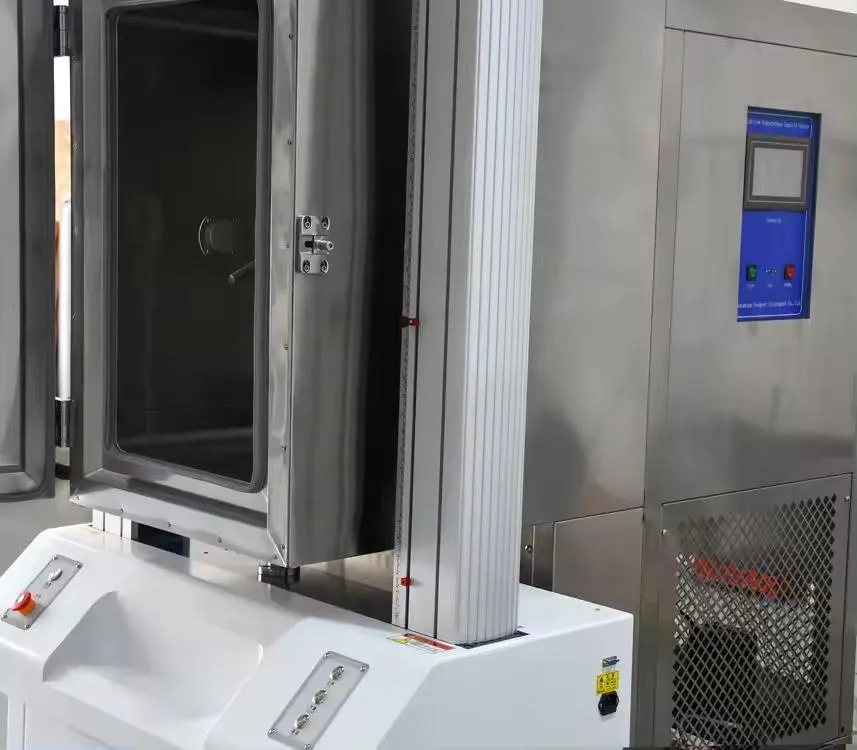

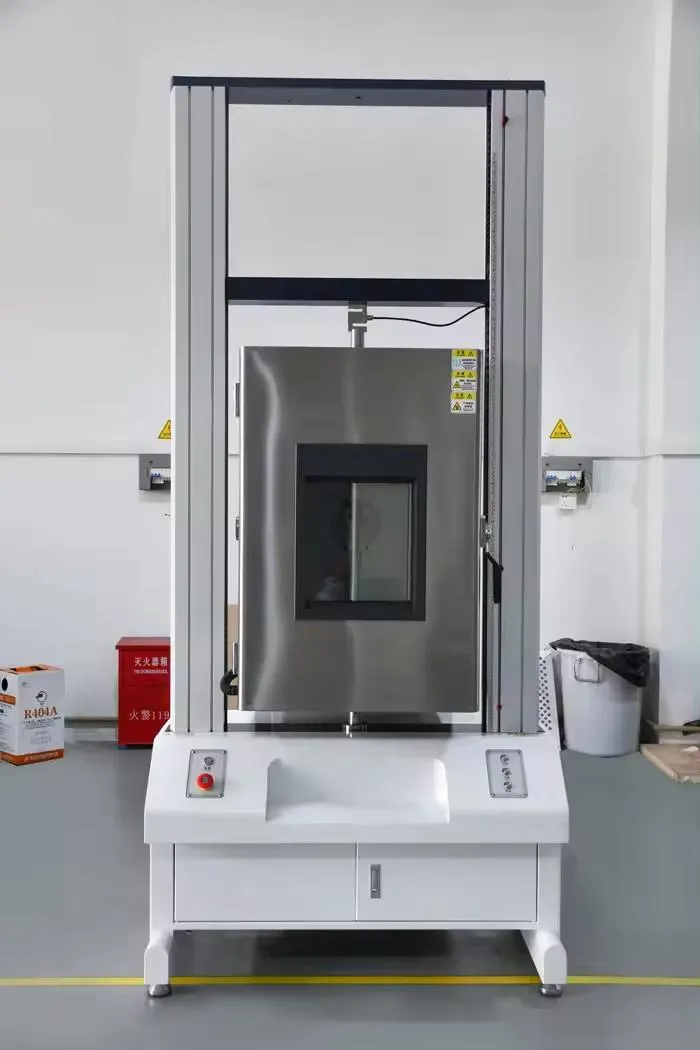

Plastic Rubber Material Tensile Testing Machine
product detail
|
Capacity
|
10,20,50,100,200,500,1000,2000, 5000kg optional
|
|
Unit choosing
|
g, kg, N, KN, LB
|
|
Operation method
|
Servo system, Computer + Software control
|
|
Resolution
|
1 / 250,000
|
|
Accuracy
|
≤0.5%
|
|
Testing speed
|
0.1~500mm/min(can be set in computer)
|
|
Testing stroke
|
400,500,600mm (Can customize)
|
|
Testing width
|
30cm (Can customize)
|
|
Testing space
|
(L×W×H) 40×40×70cm
|
|
Motor
|
Servo motor + driver
|
|
Transmission way
|
High precision ball screw
|
|
Power
|
AC220V/50Hz
|
This testing machine is of great importance for the development, production and quality control of plastic and rubber materials. In the research and development phase, it can help researchers understand the properties of materials and provide a basis for improving formulations and processes. In the production process, it is used for quality inspection of raw materials and finished products to ensure that products meet relevant standards and requirements; In the quality control process, the stability of product performance can be monitored through regular testing.
Plastic rubber material tensile testing machine also has the advantages of simple operation, safety and reliability. Professionally trained operators can easily get started and carry out various test operations. At the same time, the equipment has a variety of safety protection devices to prevent accidents during the test process and ensure the safety of personnel and equipment.
