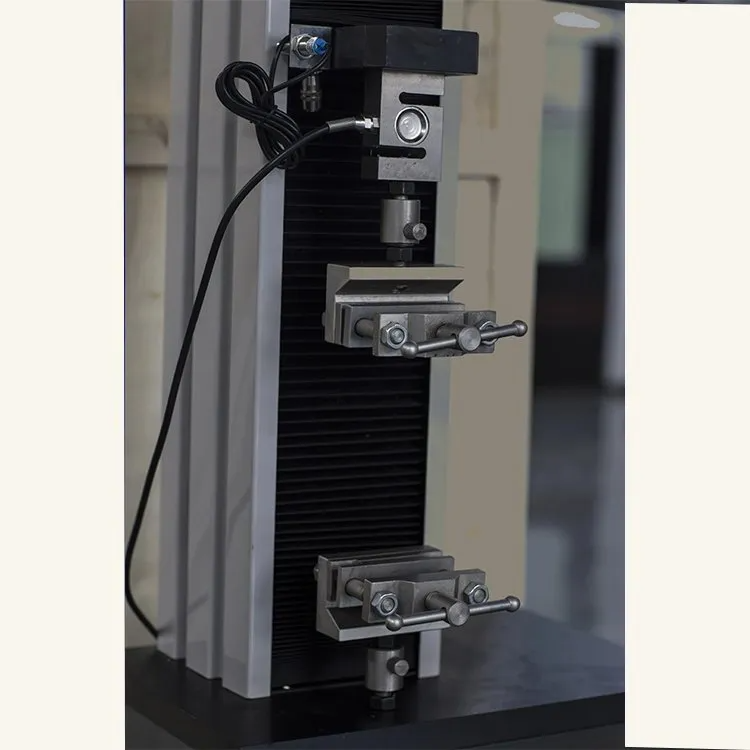

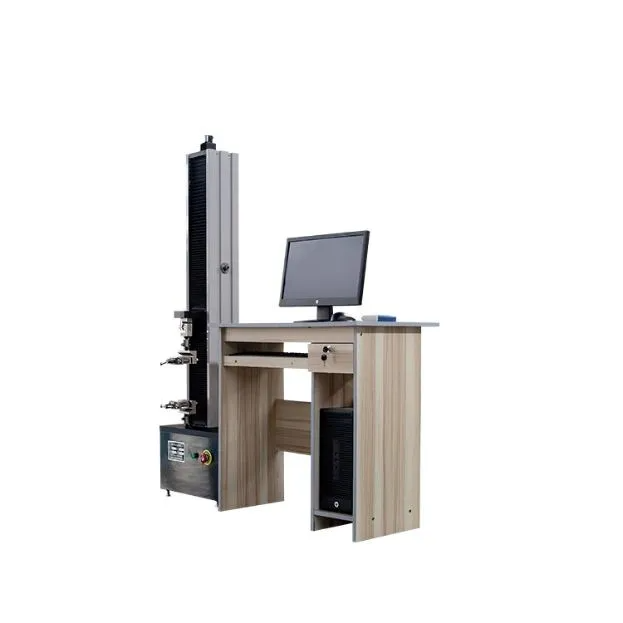

Stripping Test Line Tensile Strength Test Equipment
|
Capacity choice |
1,2,5,10,20,50,100,200,500kg optional |
| Stroke | 650mm(excluding clamp) |
| Effective testing space | 120mm |
| Weight | 70kg |
| Range of speed | 0.1~500mm/min |
| Accuracy | ±0.5% |
| Operation method | Windows operation |
| Dimention | 580×580×1250mm |
Tensile strength test equipment is an indispensable tool in materials science and engineering for the accurate determination of the behavior of materials when subjected to tensile forces.
This kind of equipment is usually composed of loading system, measurement system, control system and data processing system. One of the core components is the loading system, which is able to apply stable and precise tensile forces to simulate how the material will be stressed in real-world applications. The loading method can be hydraulic drive, electric drive or pneumatic drive, each method has its own characteristics and scope of application.
The measuring system is responsible for accurately measuring various parameters of the material during the stretching process, such as deformation, force value, etc. High-precision sensors and measuring instruments ensure data accuracy and reliability.
