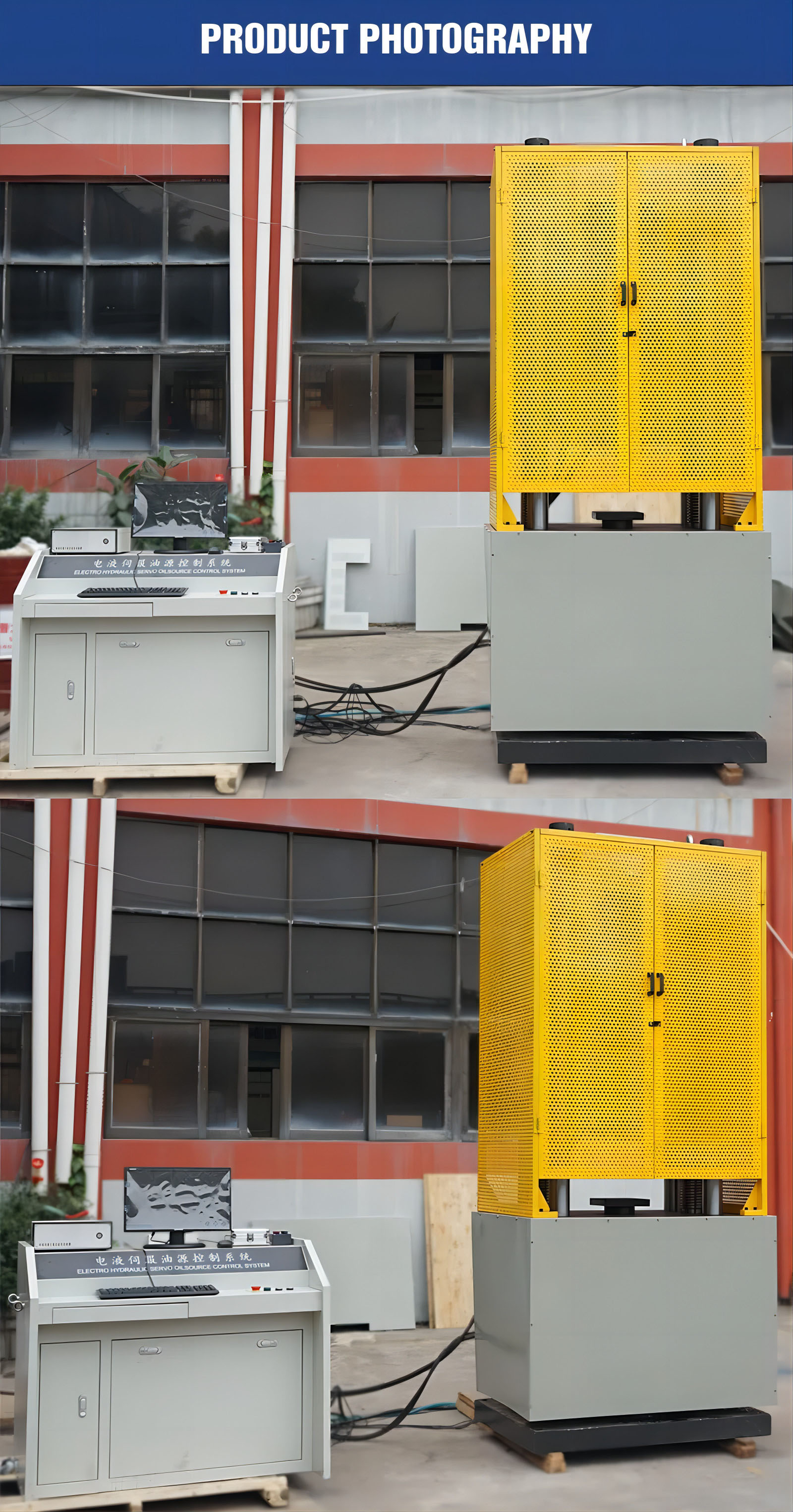

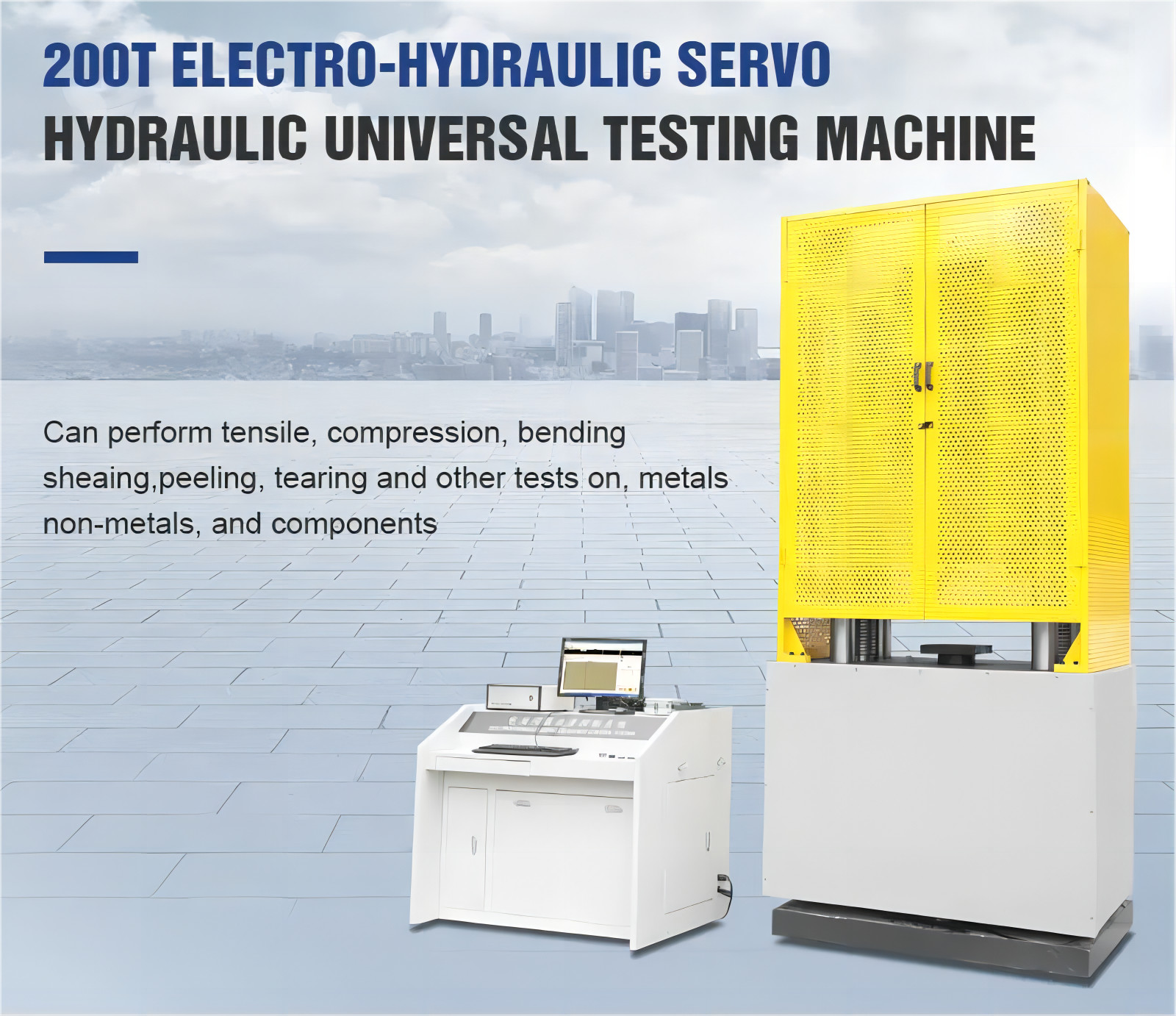

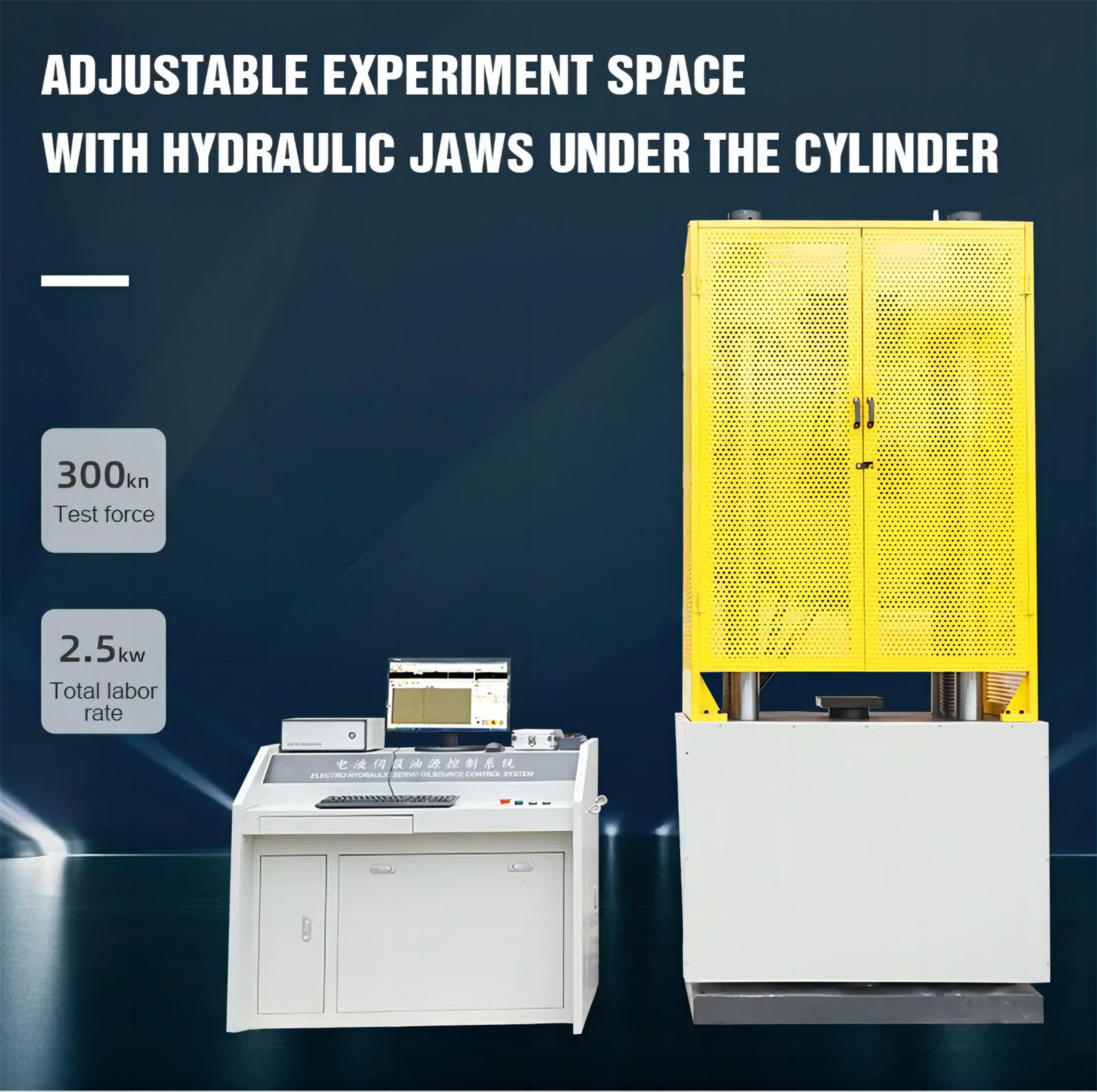

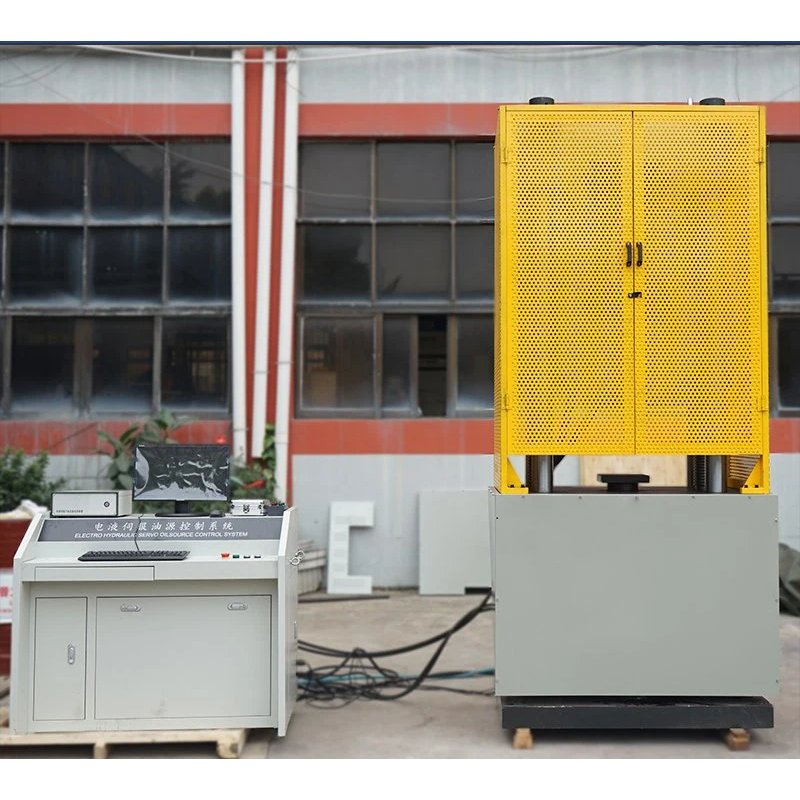

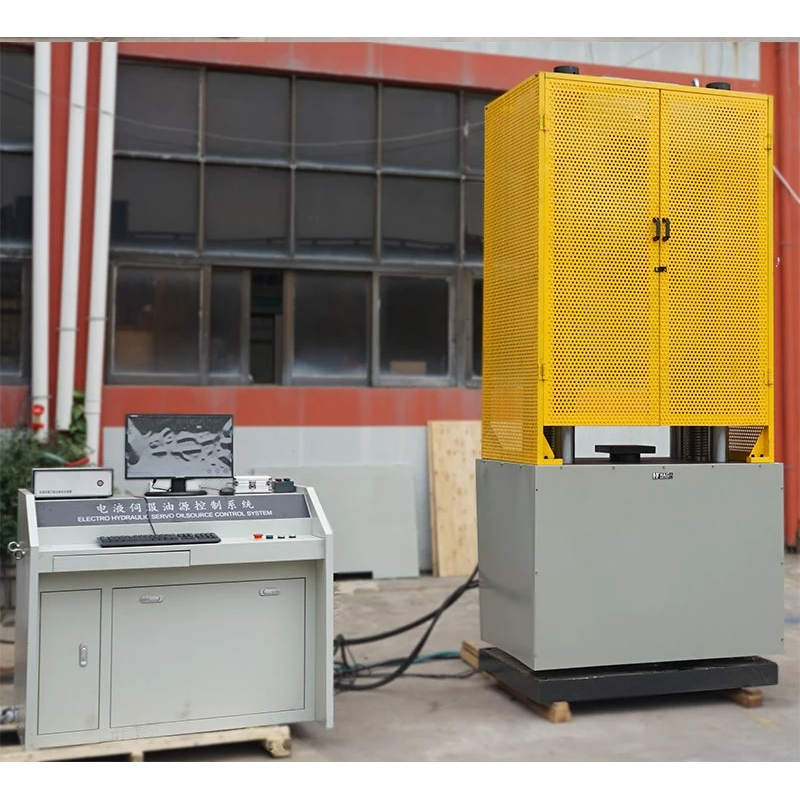

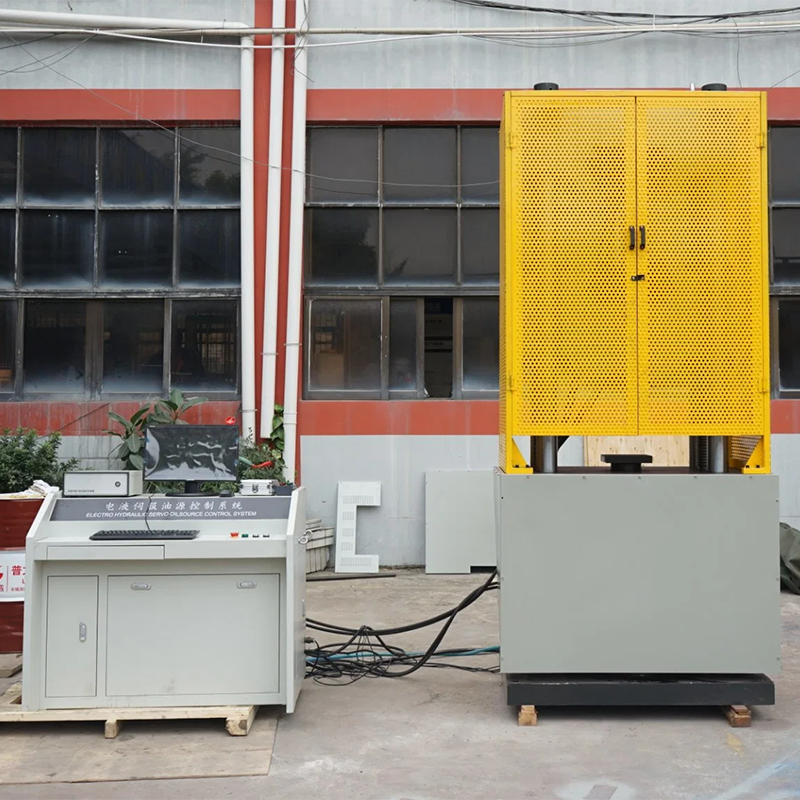

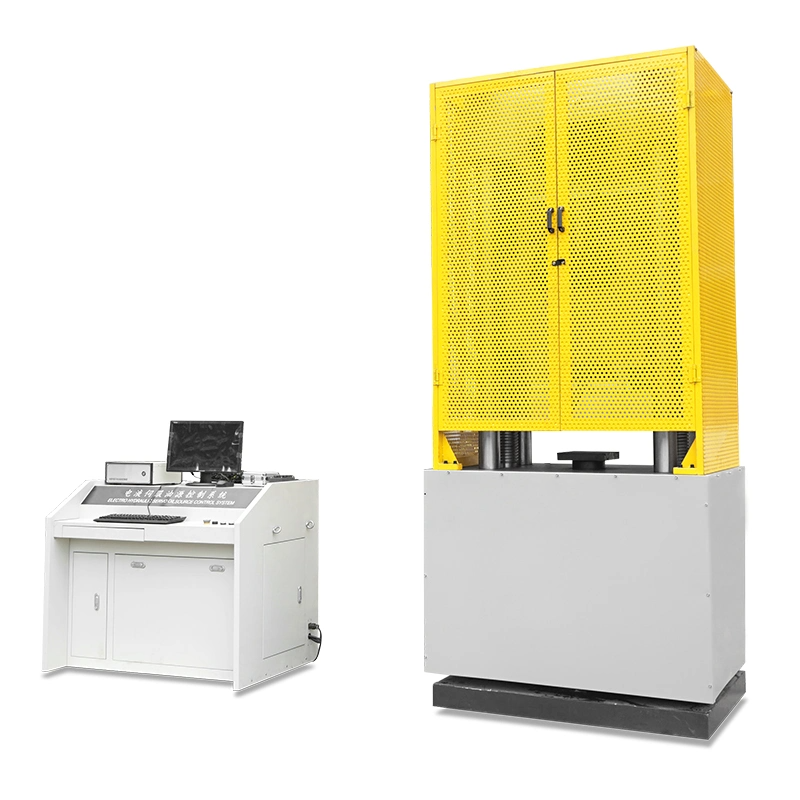

Universal Strength Tensile Testing Machine

Introduction

The Universal Testing Machineis used to test the tensile and compressive strength, flexural and bending strength and shearing strength of materials.It can perform many different varieties of tests on an equally diverse range of materials, components, and structures such as iron, steel, steel bar, rebar, rod, spring steel, wire, cable and so on. Our tensile testingn machine models are modular and can be adapted to fit the customer's requirements.

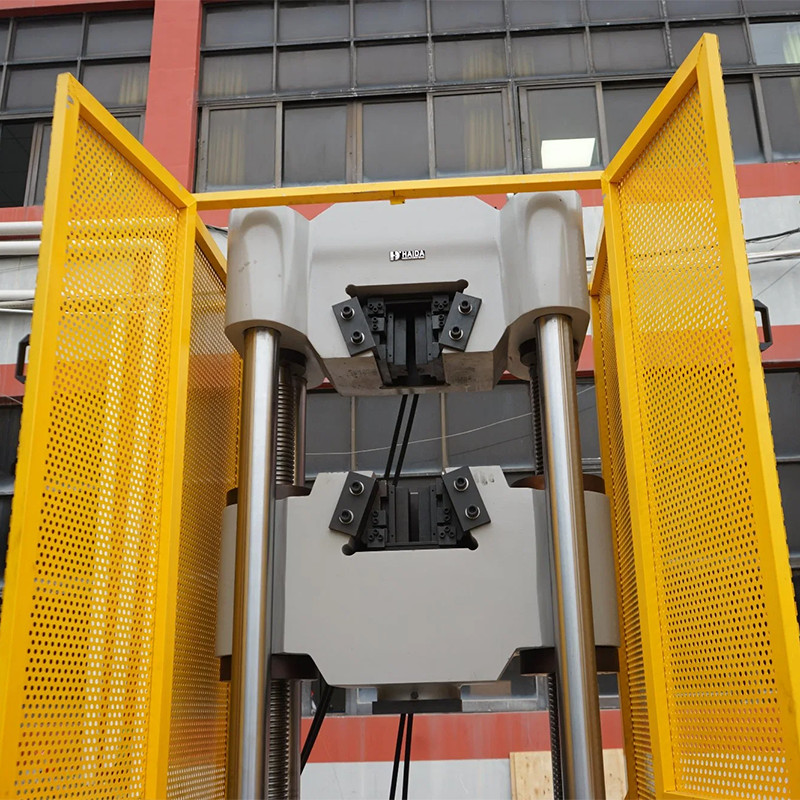

This Steel Wire Tensile Strength Testing Machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.

Applications

1. Tested sample: wood, steel sheet, steel rod, wire, screw and other metal materials.

2. Different test with different grips: tensile, bend, compression, shear test.

3. Software can issue report with results for max. force, elongation, tensile strength, compression strength, bend strength, etc.

The universal strength tensile testing machine is a highly sophisticated and versatile piece of equipment designed to measure the tensile properties of a wide array of materials. It serves as a crucial tool in numerous industries, including engineering, manufacturing, and research.

This machine operates by applying a controlled force to a sample while measuring various parameters such as deformation, stress, and strain. The sample is typically fixed at one end and subjected to a pulling force at the other, allowing for the determination of its tensile strength.

Featuring advanced loading systems, it can apply precise and consistent loads, ensuring accurate and reliable test results. The machine is equipped with high-precision sensors and transducers to capture detailed data throughout the testing process.

It offers a wide range of testing capabilities, enabling the analysis of different materials, such as metals, polymers, composites, and ceramics. Whether it's assessing the mechanical performance of structural components or evaluating the quality of raw materials, this testing machine provides valuable insights.

The universal strength tensile testing machine provides a comprehensive understanding of a material's behaviour under tensile loading. It helps in identifying potential weaknesses, determining failure modes, and assessing the material's suitability for specific applications.

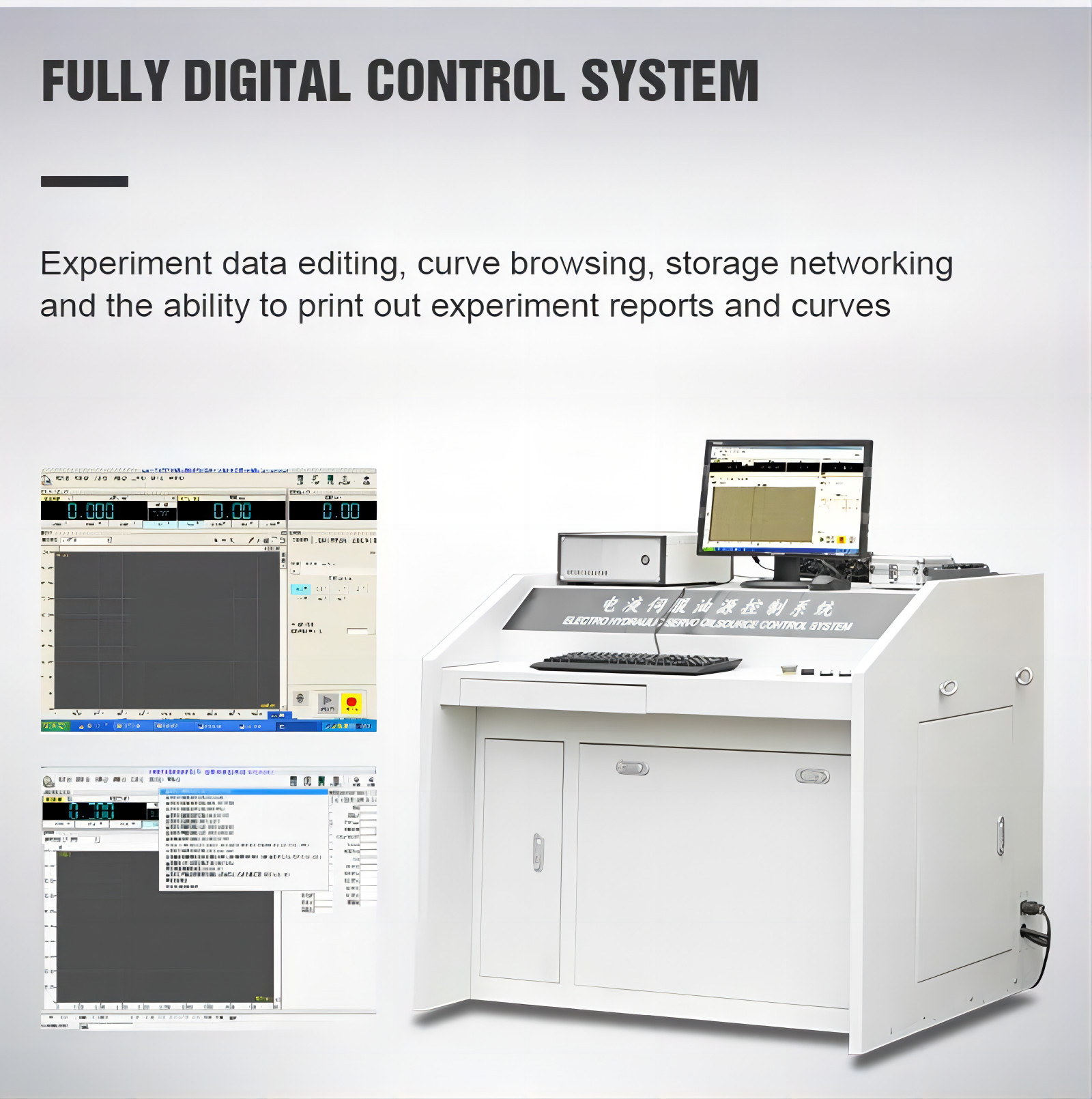

In addition to its technical capabilities, the machine is designed with user-friendly features. It includes an intuitive interface for easy operation and data interpretation. Advanced software allows for customisable test setups, data analysis, and reporting.

The machine also incorporates safety mechanisms to ensure the operator's safety during the testing process. It is regularly calibrated and maintained to ensure optimal performance and accuracy.

In summary, the universal strength tensile testing machine is a critical instrument in material science and engineering. It provides essential data for material selection, quality control, and the development of new products, contributing to advancements in various industries.
