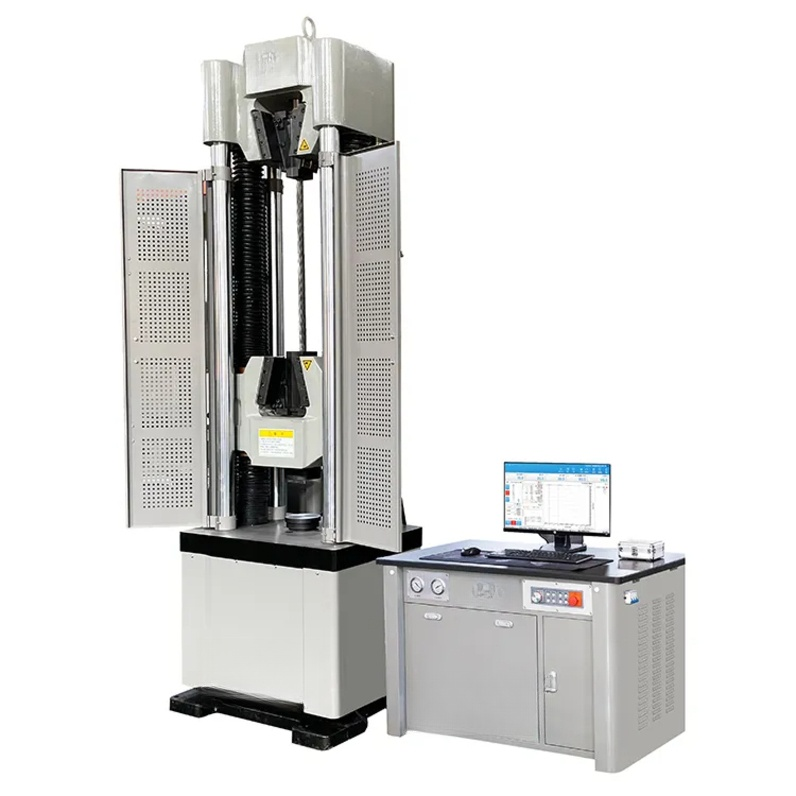

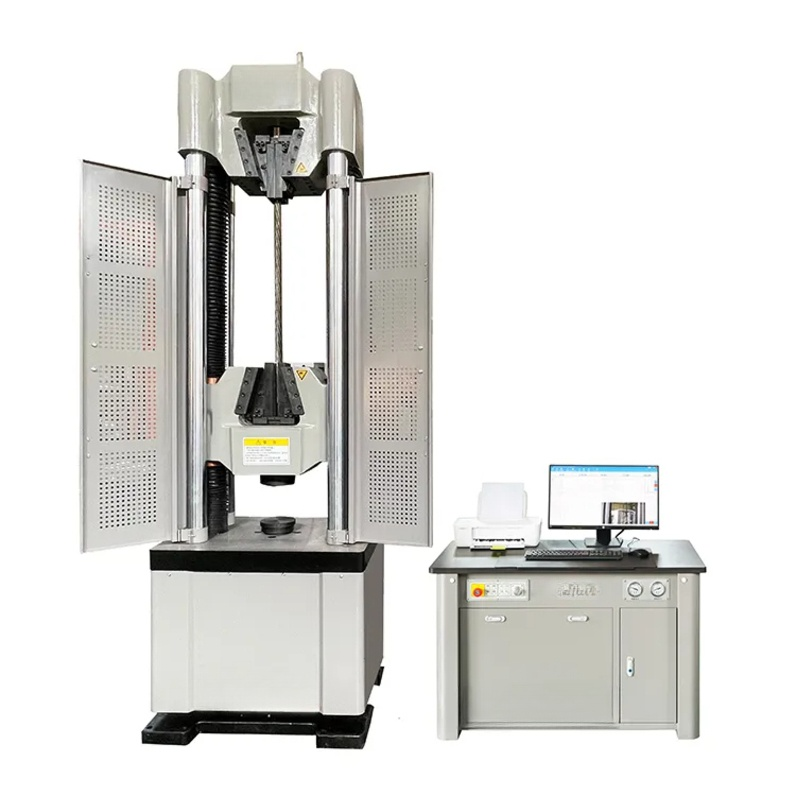

Universal Tensile Bending Shear Test Equipment/Test Instrument
product detail
| Load Accuracy | Class 1/ Class 0.5 | ||||
| Load Range | 2%~100%FS | ||||
| Load Resolution | 1/350000 | ||||
| Deformation Measurement Range | 2%~100%FS | ||||
| Deformation Accuracy | ≤± 1% | ||||
| Displacement Resolution | 0.001mm | ||||
| Displacement Error | ≤±0.5% | ||||
| Testing speeds (mm/min) | 0.1~123 | 0.1~123 | 0.1~70 | 0.1~70 | 0.1~70 |
| Max. Piston Stroke(mm) | 200 | 200 | 200/250 | 250 | 250 |
| Tension Test Space(mm) | 780 | 900 | 950/980 | 930 | 1250 |
| Compression Space(mm) | 550 | 650 | 700 | 640 | 850 |
| Column Effective Spacing(mm) |
485 | 500 | 560 | 610 | 800 |
| Clamping Method | Manual clamps(S series) Hydraulic Automatic Clamp(E and W series) | ||||
| Flat Specimen Clamping Width(mm) | 80*80 | 90*90 | 100*100 | 120*110 | 150*120 |
| Compression Plate Size | Φ 160mm | ||||
| Bending Roller Distance | 450mm | ||||
| Width Of Bending Rollers | 120mm | ||||
| Power Supply | 3-phase, AC380V, 50Hz (Can Be Customized) | ||||
Features of the machine:
1. Versatility: It can carry out a variety of different types of mechanical properties testing such as stretching, bending and shearing to meet diverse test needs.
2. High-precision measurement: equipped with advanced sensors and measurement systems to ensure the accuracy and reliability of test data.
3. Strong load capacity: can withstand large loads, suitable for testing various strength and hardness of materials.
4. Flexible test parameter setting: According to different materials and test standards, flexible adjustment of test speed, stroke, loading mode and other parameters.
5. Good stability and repeatability: The structure is stable, can maintain stable performance in multiple tests, and the test results have good repeatability.
6. A wide range of applicable materials: suitable for metal, plastic, rubber, composite materials and other materials performance test.
